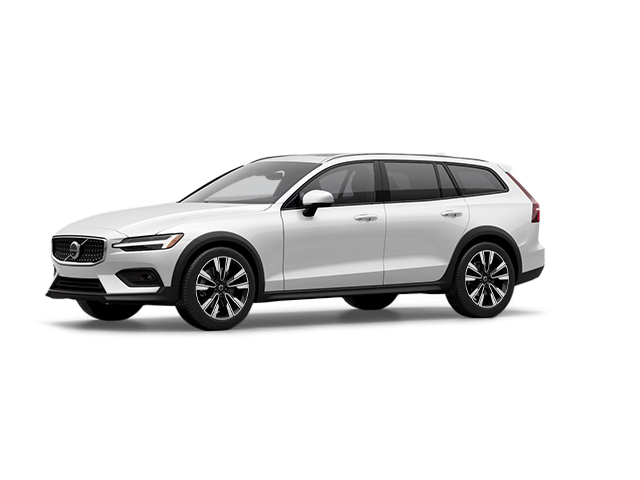

Technical specifications: 2026 Volvo V60 Cross Country B5 AWD

The Volvo V60 Cross Country B6 AWD is a raised wagon that targets modern families and active professionals looking for an alternative to SUVs, without sacrificing cabin space or all-road capabilities.

Thanks to its raised ground clearance, all-wheel drive, and spaciousness, the V60 Cross Country is well-suited for both urban commutes and nature getaways.

Discover the complete technical specifications of the Volvo V60 Cross Country B6 AWD below.

What about the Engine and Transmission?

Under the hood of the V60 Cross Country B6 AWD is the B420T engine, a turbocharged and supercharged 4-cylinder in-line engine, with direct injection, and a displacement of 1969 cm³. Entirely aluminum (block and cylinder head), it has a compression ratio of 9.0:1, with 4 valves per cylinder, controlled by two overhead camshafts (DOHC).

It develops a power of 295 hp at 5400 rpm and 310 lb-ft (420 Nm) of torque available between 2100 and 4800 rpm. This engine is supported by an Integrated Starter Generator (ISG) of 11.4 hp between 3000 and 8000 rpm, as well as an electric motor of 8.5 kW (30 Nm).

Power is transmitted to all four wheels via an 8-speed automatic transmission (AWF8G55), featuring a final drive ratio of 3.329, ensuring a smooth and responsive drive.

What are the Volvo V60 Cross Country’s Road Performance figures?

The V60 CC B6 AWD boasts impressive performance for a raised wagon: it completes the 0 to 100 km/h (0-62 mph) sprint in just 6.4 seconds and reaches a maximum speed of 180 km/h (112 mph), in line with Volvo's commitment to safety.

In terms of fuel consumption (EPA data):

• City : 10.4 L/100 km (22.6 MPG)
• Highway : 8.0 L/100 km (29.4 MPG)
• Combined : 9.3 L/100 km (25.3 MPG)

Its electrically assisted steering offers remarkable precision, and its all-wheel drive optimizes traction on all surfaces: asphalt, snow, mud, or gravel.

And the Chassis Behavior?

The V60 CC chassis relies on a front suspension with double wishbones, featuring coil springs, hydraulic shock absorbers, and a stabilizer bar. At the rear, there is an integral axle with a composite transverse leaf spring, also accompanied by hydraulic shock absorbers. Adaptive air suspension is available as an option.

With a steering ratio of 16.7:1, the steering wheel turns 2.9 to 3 times from lock to lock, giving a turning radius of 11.6 m. The braking system, combining ABS, EBD, and EBA, is equipped with discs ranging from 322 to 345 mm at the front, and 320 mm at the rear, allowing braking from 100 to 0 km/h in just 35 meters.

What are the Dimensions and Capacities?

The Volvo V60 Cross Country measures 4959 mm (195.2 in) in length, 1903 mm (74.9 in) in width, with a wheelbase of 2941 mm (115.8 in). Its ground clearance of 195 mm (7.7 in) gives it real ease off the beaten path. It offers interesting all-road angles:

• Approach angle : 18.9°
• Departure angle : 20.8°
• Breakover angle : 17.7°

The curb weight is 1942 kg (4281 lb), for a Gross Vehicle Weight Rating (GVWR) of 2450 kg (5401 lb). It can tow up to 900 kg (1984 lb) with brakes. The fuel tank holds 60 liters (15.8 US gal), and the maximum roof load is 100 kg (220 lb). The drag coefficient varies between 0.35 and 0.37, with a frontal area of 2.37 m².

What does the Cabin look like?

The interior of the V60 Cross Country is spacious and well-designed. Passengers benefit from headroom of 959 mm (37.8 in) in the front and 957 mm (37.7 in) in the rear (with panoramic roof), while legroom reaches 1071 mm (42.2 in) in the front and 911 mm (35.9 in) in the rear.

Interior dimensions:

• Shoulder width : 1460 mm (57.5 in) (front) / 1420 mm (55.9 in) (rear)
• Hip width : 1432 mm (56.4 in) (front) / 1416 mm (55.7 in) (rear)

The trunk volume is very generous: 714 L (25.2 cu ft) in normal configuration, and up to 1517 L (53.6 cu ft) with seats folded down, with a loading length of 1988 mm (78.3 in), an opening height of 759 mm (29.9 in), and a minimum floor width of 1100 mm (43.3 in).

Final Word

The Volvo V60 Cross Country B6 AWD is the ideal companion for those who want to combine style, safety, space, and versatility. Whether for the snowy roads of Quebec or weekend getaways, it delivers.
